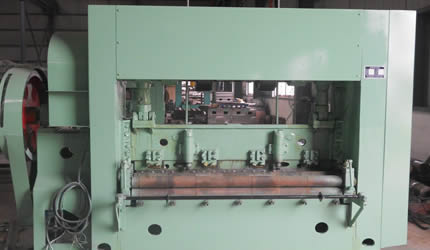

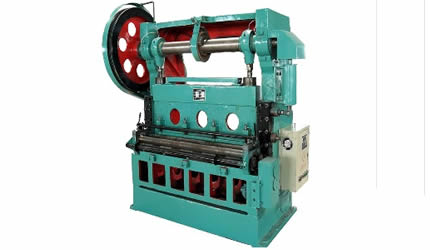

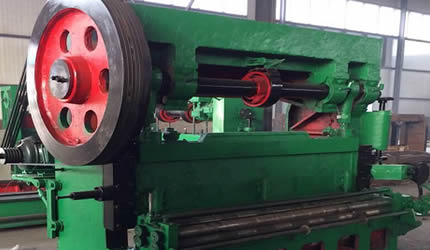

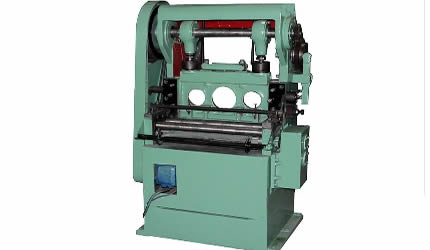

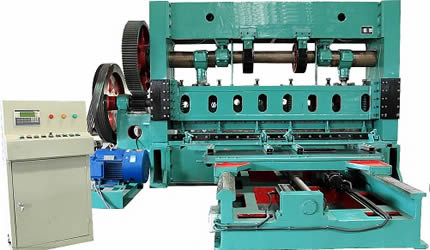

Expanded Metal Mesh Machine
Our expanded metal machine is a revolutionary products,.With automatic lubricating system,automatic feeding material by servo motor ,the electric system controlled by PLC. working stable, easy for operation. Our machine widely used in wire mesh industry and popular in global wire mesh industry. It has been exported to over 30 countries and regions.Such as Thailand, U.A.E,Indonesia, Italy, Ukraine, Turkey, Australia, Russia Mexico etc.
We have various different type of expanded metal machine, the specification from 6.3tons to 160 tons.The mesh punching thickness from 0.1 to 8.mm, The mesh width from 600mm to 2500mm.
| Model | Nominal Force | Material Thickness | Max Working Width | Mesh (LWD) | Feeding Distance(AUTO) | Stroke | Motor Power | Gross Weight | Dimentions |
| KN | mm | mm | mm | mm | RPM | KW | Ton | mm | |
| 6.3T A | 63 | ≤1.0 | 600 | ≤20 | 0-1.5 | 195 | 2.2 | 1 | 1090*710*1450 |
| 6.3T B | 63 | ≤1.0 | 600 | ≤15 | 0-1.6 | 195-320 | 2.2 | 1 | 1090*710*1450 |
| 16T | 160 | ≤1.0 | 1000 | ≤25 | 0-1.2 | 150 | 3.0 | 2.3 | 1740*400*1500 |
| 16T plus | 160 | ≤1.0 | 1000 | ≤25 | 0-1.6 | 250 | 5.5 | 2 | 1740*850*1630 |
| 25T | 250 | ≤1.5 | 1250 | ≤30 | 0-1.2 | 150 | 4.0 | 3.5 | 1940*1600*2010 |
| 40T | 400 | ≤2.0 | 1500 | ≤80 | 0-3.2 | 100 | 11.0 | 6 | 2870*990*2140 |
| 63T | 630 | 0.5-2.5 | 2000 | ≤100 | 0-4.0 | 70 | 11.0 | 11.5 | 3500*2400*2300 |
| 63T plus | 630 | 0.5-3.0 | 2000 | ≤150 | 0-4.0 | 45 | 11.0 | 11.5 | 3500*2400*2300 |
| 100T | 1000 | 0.5-4.0 | 2000 | ≤200 | 0-4.0 | 60 | 18.5 | 13 | 3280*3100*2280 |
| 100T plus | 1000 | 0.5-4.0 | 2500 | ≤200 | 0-4.0 | 60 | 22.0 | 14 | 3600*3700*2280 |
| 160T | 1600 | 0.5-8.0 | 2000 | ≤200 | 0-7.0 | 45 | 30.0 | 22 | 3280x3620x2850 |
