Stainless Steel Woven mesh
Stainless Steel Woven mesh

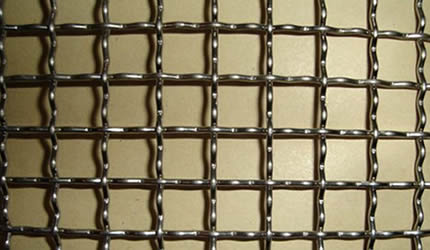

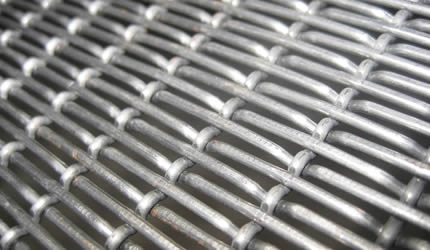

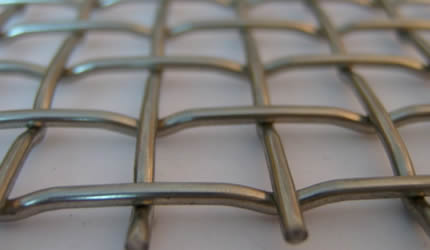

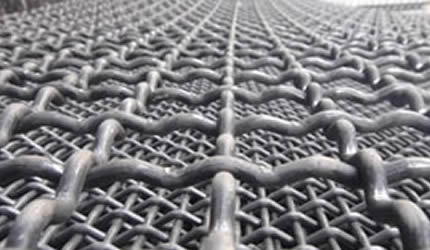

Stainless steel woven mesh also called stainless crimped mesh, crimped wire,it made by per-crimped wire , The metal wire is pre-crimped before weaving,which can keep the warp and weft wire in a relatively correct position.Thus enabling the consistency of the opening size. according to crimped no.s per aperture , there are single intermediate woven mesh and double intermediate woven mesh.
Woven mesh is beautiful and stable, widely used as sieving mesh, petrochemical filter, , decorative mesh and mesh fencing, food machinery mesh, barbecue wire mesh.
The grade of stainless steel nomrally AISI304 and AISI316.

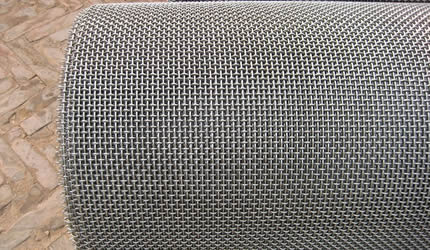

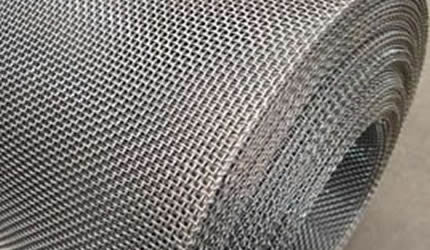

Stainless Steel Woven Wire Mesh Rolls
Standard length : 30m
Mesh per line inch : 1-500
Standard width: 1000mm,1220mm (some stock has 1530mm)
S/S woven wire mesh (crimped wire mesh) | ||||
Mesh | Aperture | Wire | Width | Length |
Nos/Inch | mm | mm | m | m |
20 | 0.77 | 0.5 | 1/1.22 | 30 |
18 | 0.91 | 0.5 | 1/1.22 | 30 |
16 | 1.09 | 0.5 | 1/1.22 | 30 |
16 | 0.99 | 0.6 | 1/1.22 | 30 |
14 | 1.31 | 0.5 | 1/1.22 | 30 |
14 | 1.21 | 0.6 | 1/1.22 | 30 |
12 | 1.62 | 0.5 | 1/1.22 | 30 |
12 | 1.52 | 0.6 | 1/1.22 | 30 |
12 | 1.42 | 0.7 | 1/1.22 | 30 |
10 | 2.04 | 0.5 | 1/1.22 | 30 |
10 | 1.94 | 0.6 | 1/1.22 | 30 |
10 | 1.84 | 0.7 | 1/1.22 | 30 |
10 | 1.74 | 0.8 | 1/1.22 | 30 |
10 | 1.64 | 0.9 | 1/1.22 | 30 |
10 | 1.54 | 1 | 1/1.22 | 30 |
8 | 2.58 | 0.6 | 1/1.22 | 30 |
8 | 2.48 | 0.7 | 1/1.22 | 30 |
8 | 2.38 | 0.8 | 1/1.22 | 30 |
8 | 2.28 | 0.9 | 1/1.22 | 30 |
8 | 2.18 | 1 | 1/1.22 | 30 |
6 | 3.63 | 0.6 | 1/1.22 | 30 |
6 | 3.43 | 0.8 | 1/1.22 | 30 |
6 | 3.33 | 0.9 | 1/1.22 | 30 |
6 | 3.23 | 1 | 1/1.22 | 30 |
6 | 3.03 | 1.2 | 1/1.22 | 30 |
6 | 2.73 | 1.5 | 1/1.22 | 30 |
Mesh | Aperture | Wire | Width | Length |
Nos/Inch | mm | mm | m | m |
5 | 4.48 | 0.6 | 1/1.22 | 30 |
5 | 4.38 | 0.7 | 1/1.22 | 30 |
5 | 4.18 | 0.9 | 1/1.22 | 30 |
5 | 4.18 | 0.9 | 1/1.22 | 30 |
5 | 4.08 | 1 | 1/1.22 | 30 |
5 | 3.88 | 1.2 | 1/1.22 | 30 |
5 | 3.58 | 1.5 | 1/1.22 | 30 |
4 | 5.65 | 0.7 | 1/1.22 | 30 |
4 | 5.65 | 0.7 | 1/1.22 | 30 |
4 | 5.55 | 0.8 | 1/1.22 | 30 |
4 | 5.45 | 0.9 | 1/1.22 | 30 |
4 | 5.35 | 1 | 1/1.22 | 30 |
4 | 5.15 | 1.2 | 1/1.22 | 30 |
4 | 4.95 | 1.4 | 1/1.22 | 30 |
3.74 | 6 | 0.8 | 1/1.22 | 30 |
3.68 | 6 | 0.9 | 1/1.22 | 30 |
3.63 | 6 | 1 | 1/1.22 | 30 |
3.53 | 6 | 1.2 | 1/1.22 | 30 |
3.39 | 6 | 1.5 | 1/1.22 | 30 |
2.85 | 8 | 0.9 | 1/1.22 | 30 |
2.82 | 8 | 1 | 1/1.22 | 30 |
2.76 | 8 | 1.2 | 1/1.22 | 30 |
2.67 | 8 | 1.5 | 1/1.22 | 30 |
2.31 | 10 | 1 | 1/1.22 | 30 |
2.27 | 10 | 1.2 | 1/1.22 | 30 |
2.23 | 10 | 1.4 | 1/1.22 | 30 |
2.21 | 10 | 1.5 | 1/1.22 | 30 |
2.13 | 10 | 1.9 | 1/1.22 | 30 |
2.12 | 10 | 2 | 1/1.22 | 30 |
2.12 | 10 | 2 | 1/1.22 | 30 |
1.92 | 12 | 1.2 | 1/1.22 | 30 |
1.90 | 12 | 1.4 | 1/1.22 | 30 |
1.88 | 12 | 1.5 | 1/1.22 | 30 |
1.55 | 15 | 1.4 | 1/1.22 | 30 |
1.54 | 15 | 1.5 | 1/1.22 | 30 |
1.51 | 15 | 1.8 | 1/1.22 | 30 |
Mesh | Aperture | Wire | Width | Length |
Nos/Inch | mm | mm | m | m |
1.50 | 15 | 1.9 | 1/1.22 | 30 |
1.49 | 15 | 2 | 1/1.22 | 30 |
1.45 | 15 | 2.5 | 1/1.22 | 30 |
1.17 | 20 | 1.8 | 1/1.22 | 30 |
1.16 | 20 | 1.9 | 1/1.22 | 30 |
1.15 | 20 | 2 | 1/1.22 | 30 |
1.13 | 20 | 2.5 | 1/1.22 | 30 |
1.10 | 20 | 3 | 1/1.22 | 30 |
0.95 | 25 | 1.8 | 1/1.22 | 30 |
0.94 | 25 | 1.9 | 1/1.22 | 30 |
0.94 | 25 | 2 | 1/1.22 | 30 |
0.92 | 25 | 2.5 | 1/1.22 | 30 |
0.91 | 25 | 3 | 1/1.22 | 30 |
0.78 | 30 | 2.5 | 1/1.22 | 30 |
0.77 | 30 | 3 | 1/1.22 | 30 |
