Perforated Machine
CNC Perforated Metal Machine
Deep-throat press
1.Increased throat deep andworking area.
2.Adopts horizontally placedcrankshaft.
3.Combined dry type pneumaticfriction clutch and brake.
4.Manual shut heightadjustment with scale display.
5.JE21S-100 and above adoptslifting balance device.
6.Safety Duplex valves.
7.Control by PLC withinternational brand.
| Feature | J21S-25A | J21S-40A | J21S-80A | |
Nominal Force | kN | 250 | 400 | 800 |
Nominal Force Distance | mm | 2.5 | 4 | 5 |
Slide Stroke Distance | mm | 80 | 120 | 130 |
Strike per minute | SPM | 60 | 55 | 45 |
Max. Die Height | mm | 180 | 220 | 290 |
Die Height Adjustment | mm | 70 | 80 | 100 |
Between Slide Center & Frame | mm | 700 | 700 | 450/800 |
Bolster (FB×LR) | mm | 400×600 | 480×700 | 580×860 |
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | Φ120 | Φ220×25×Φ180 | Φ200×45×Φ180 |
Bolster Thickness | mm | 70 | 80 | 100 |
Bolster Opening (Dia.×FB×LR) | mm | 200×200 | 200×240 | 220×260 |
Slide Area (FB×LR) | mm | 210×250 | 270×320 | 280×380 |
Shank Hole (Dia.×Dpth) | mm | Φ40×70 | Φ50×70 | Φ60×75 |
Between Columns | mm | 350 | 390 | 450 |
Motor Power | kW | 2.2 | 4 | 7.5 |
Outline Size (FB×LR×H) | mm | 1790×990×2288 | 1965×1180×2295 | 2220×1380×2650 |

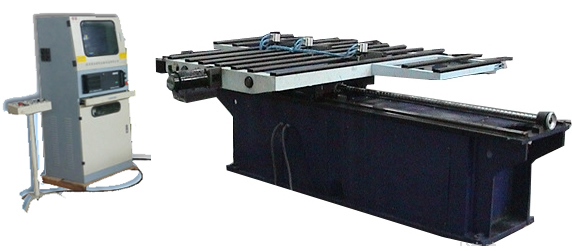

CNC Fedding Table
| Model | CT2512 |
| Motor | 1.Servo 2.Stepper |
| Max Plate Thickness | 5mm |
| Plate Size |
|
| Max Feeding Speed | 40meter/minute |
| Max Feeding Frequency | 150HPM |
| Accuracy | 0.05mm |
| Coordinate | “X” axis “Y” axis |
| Net weight | 1400kg |
| Packing Size | 3200mm*1700mm*900mm |
