Stainless Steel Wire Mesh

Metal wire mesh also called wire cloth, hardware cloth , wire mesh screen, etc.

The metal wire used in metal woven mesh are: Stainless steel wire, brass wire, bronze wire, copper wire, iron wire, galvanized wire, aluminum wire, aluminum alloy wire, nickel wire, molybdenum wire, palladium wire, platinum and rhodium alloy wire, silver wire, gold wire, resistance wire, konstantan alloy wire, titanium wire, Monel wire.

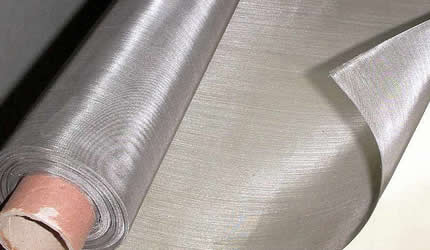

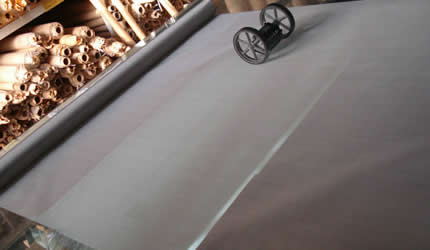

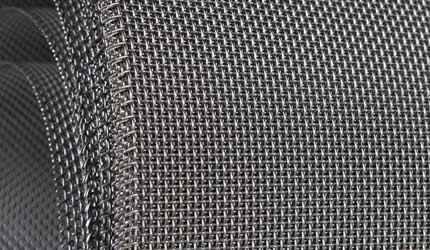

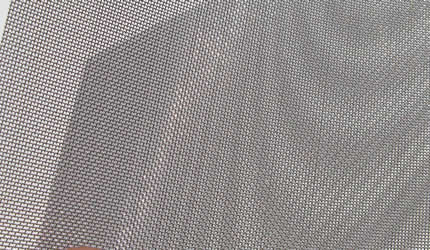

The mesh that produced by stainless steel wire is called stainless steel wire mesh，or stainless steel wire cloth,or stainless steel hardware cloth or stainless steel screen, etc.

Stainless steel wire mesh is an important variety in metal wire mesh with wide applications. Stainless steel wire mesh can be classified in various ways.

Classified by process methods,stainless steel wire mesh can be divided into woven wire mesh and welded wire mesh.

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) / 100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) / 100 Square Foot
1x1	0.080	2.03	0.920	23.37	84.6	41.1
2X2	0.063	1.60	0.437	11.10	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.60	0.187	4.75	56.0	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.020	0.51	0.080	2.03	64.0	26.1
12X12	0.023	0.584	0.060	1.52	51.8	42.2
12X12	0.020	0.508	0.063	1.60	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.020	0.508	0.051	1.30	51.0	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.020	0.508	0.0300	0.76	36.0	55.2
20X20	0.016	0.406	0.0340	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.70	44.2	31.8
30X30	0.013	0.330	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29.0
40X40	0.010	0.254	0.0150	0.38	36.0	27.6
50X50	0.009	0.229	0.0110	0.28	30.3	28.4
50X50	0.008	0.203	0.0120	0.31	36.0	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.20	29.8	20.8
80X80	0.0065	0.165	0.0060	0.15	23.0	23.2
80X80	0.0055	0.140	0.0070	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.0060	0.15	36.0	11.0
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.0040	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.0940	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.0660	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.0610	36.0	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30.0	4.40
400X400	0.0010	0.0254	0.0015	0.370	36.0	3.3
500X500	0.0010	0.0254	0.0010	0.0254	25.0	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25.0	2.63
